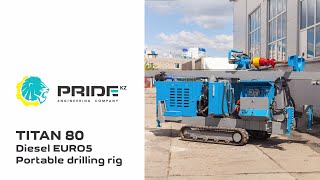

New Pride TITAN 80 drilling rig
≈ KES 7,248,000
Kostanay9169 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
250 m
Kazakhstan, Kostanay
350 m
Kazakhstan, Kostanay
200 m
Kazakhstan, Kostanay
300 m
China
1,000 m
China, Shanghai
Any configuration is possible based on your drilling aim and budget.
✅ Self-propelled, on a tracked platform;
✅ American engine conforming to the EURO5 standard;
✅ Independent drives for more flexible control.
________________________________________________________
➤The hydraulic drilling rig is used for drilling water wells up to 250 m deep, including inclined, geological surveys, drilling holes for installing fences, foundations, engineering surveys, screwing piles, carrying out construction work.
➤ The drilling rig is equipped with a drilling mud supply unit for flushing or compressed air supply for purging and air hammer operation.
➤ The installation is easily controlled using a 2-flow hydraulic system, which allows you to independently adjust the force on the face and rotation of the tool.
➤ The installation can be equipped with
- remote control panel;
- hydraulic auxiliary winch;
- hydraulic outriggers;
- drilling pump;
- casing table;
- a descent/ascent overcoming system with an angle of up to 45 degrees (for the TITAN series on a tracked platform)
________________________________________________________
Specifications:
➤ OPERATING
Max. initial diameter, mm - 300
Max drilling depth, m - 250
Dimensions, mm:
- Length 6100
- Width 1590
- Height 2530
Mass, kg - 4600
➤ ROTATOR
Type - Gearbox RBMT 250
Rotative moment, (Нм) - I range 2000 / II range 1000
Rotation speed, (sev/min) - I range 150 / II range 300
MAST Pulling force, (kg) - up: 4000 / down: 2700
Carriage feed rate, m/s - 0,13
➤ CHASSIS
Type - crawler
Speed, km/h - 5
Permissible roll (static), degrees to vertical - up to 20
✅ Гусеничная платформа TITAN 80 оборудована независимыми приводами, обеспечивающими более гибкое управление.
✅ Особенность данной установки – американский двигатель, соответствующий стандарту Евро5.
✅ Установка TTIAN 80 оснащена узлом подачи бурового раствора для работы с промывкой или подачи сжатого воздуха для работы с продувкой и с пневмоударником.
Управление установкой легко осуществляется с помощью 2-х поточной гидравлической системы, что позволяет независимо регулировать усилие на забой и вращение инструмента.
_________________________________________
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
? Основные
Габариты машины (ДхШхВ), мм - 6100х1590х2530
Масса машины (полная), кг - До 4600
Емкость топливного бака, л - 70
Емкость гидравлического бака, л - 300
Глубина бурения шнеком, м - До 50
Глубина бурения с промывкой, м - До 250
? Буровые характеристики
Тип вращателя - Редуктор РБМТ 250
Параметры вращения 1 передачи:
- Крутящий момент, Н*м - 2000
- Скорость вращения, об/мин - 150
Параметры вращения 2 передачи:
- Крутящий момент, Н*м - 1000
- Скорость вращения, об/мин - 300
Скорость подачи каретки, м/с - 0,13
Привод подачи каретки - Цепной полиспаст
Усилие подачи вверх, кг - Не менее 4000
Усилие подачи вниз, кг - Не менее 2700
? Ходовые характеристики
Тип движителя - Гусеничный
Ширина колеи, мм - 1530
Допустимая скорость передвижения, км/ч - До 5
Допустимый крен (статический), о к вертикали - До 20
