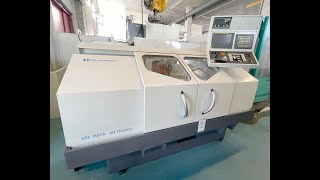

Kellenberger KEL-VISTA UR 175X600 cylindrical grinding machine
Brügg6903 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+41 32 373 ...
Show
+41 32 373 34 44
+41 79 758 ...
Show
+41 79 758 03 25
Switzerland
Distance between centres 800 mm
Grinding length 600 mm
Max. work piece diameter 349 mm
Travels:
Z axis 750 mm
X axis 320 mm
Workpiece weight on centres max. 100 kg
Grinding weehl left side:
Diameter 400 mm
Width 80 mm
Bore 127 mm
Grinding wheel right side:
Diameter 300 mm
Width 40 mm
Bore 127 mm
Grinding wheel speeds:
stepless
from 875 rpm
up to 1900 rpm
Grinding spindle head:
Rotatable grinding spindle head (b-axis) +10 / -210 °
Automatic swivelling axis Hirth (B1) 2.5 °
Fine adjustment (B2) 0.01 °
Peripheral speed 35 m/s
Work piece spindle head:
speeds:
stepless
from 8 rpm
up to 800 rpm
Holding taper: 5 MT
rotatable +100 / -10 °
Tailstock:
con regolazione micrometrica
Taper in tailstock: 4 MT
Tailstock travel of barrel 50 mm
Table speed:
stepless
Rapid motion 12 m/min
Air connect 6 bar
Voltage 50 Hz 3x 400 Volt
Grinding spindle motor 5 kW
Machine's weight about 3000 kg
Overall dimensions machine:
Length 3200 mm
Width 1700 mm
Height 2000 mm
Various accessories:
Coolant system
Coolant through spindle (cts)
Paper filtration system
Touch probe MARPOSS
Measuring control MOVOMATIC
Internal grinding attachment:
Number of spindles 1
Rotation speed
up to 42000 rpm
Set of flanges
Balancing attachment
Balancing arbor
Tailstock with fine adjustement
Longitudinal positioning actife
RS-232 Interface
